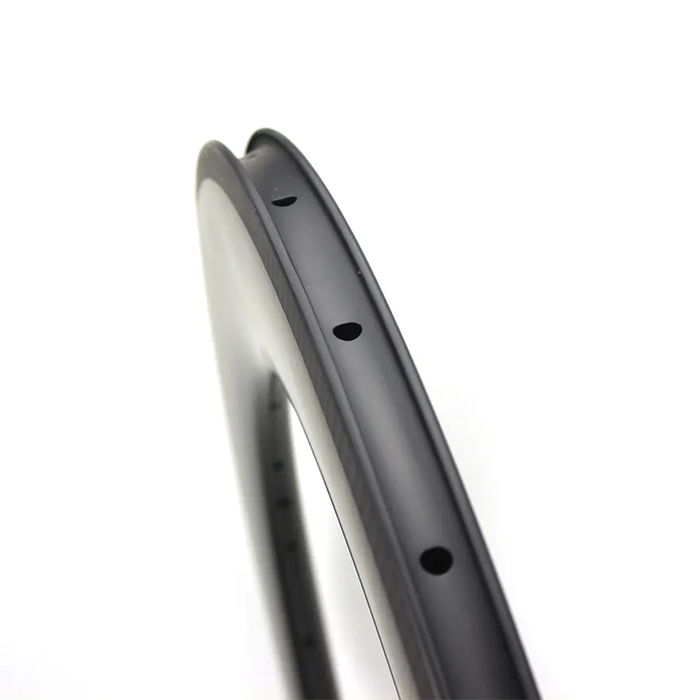

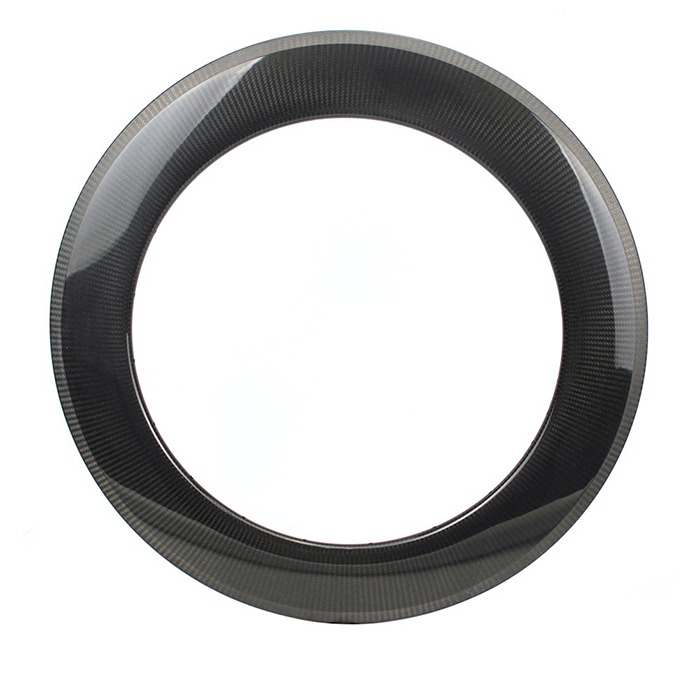

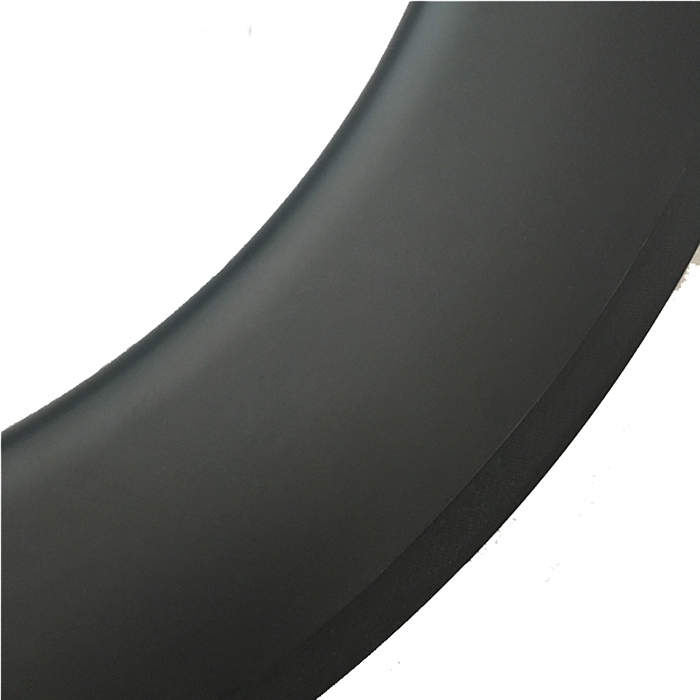

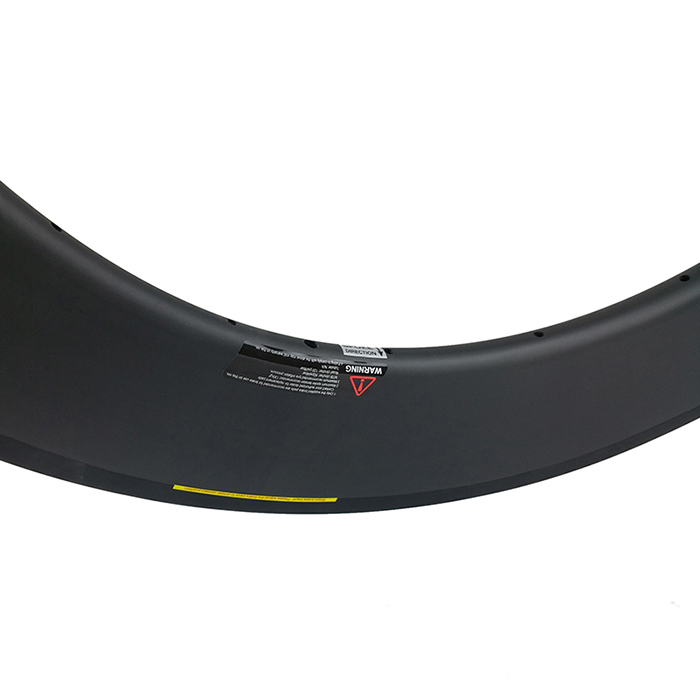

The 88mm carbon rims offers unmatched aerodynamics with an ultra depth of 88mm. Lightweight. Responsive. Speed. The deep-section aero carbon rim is compatible with the disc brake system, allowing for wider clearance and better stopping power.
High Profile 88mm*700C Carbon rim is the perfect partner for your time-trial, triathlon, or crit racing bike.
-Aero design mainly for road race, track, triathlon and iron-man races.
-High Profile 88mm*700C Carbon clincher / Tubular Road Bicycle Rim,Aerodynamic, High Stiffness and Light Weight for High Speed Track, Triathlon Races.
-Factory Production and Sales Directly, EN and UCI Standard Approval.
-Both rim brake and disc brake systems are available.

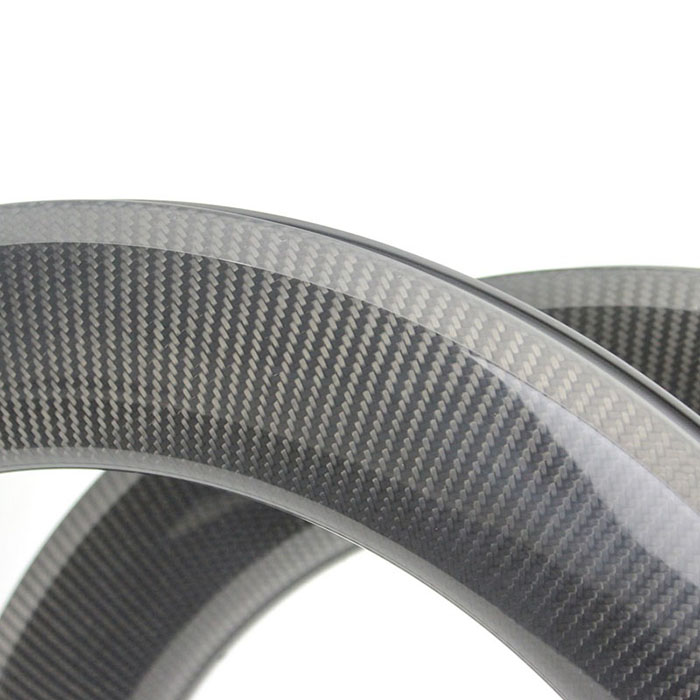

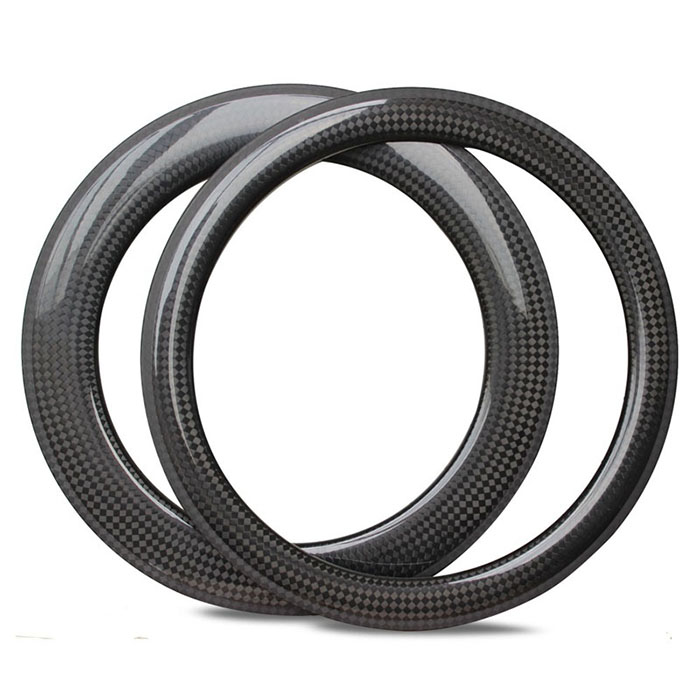

-Customized UD/3K/12K/Twill/Kevlar/Bowknot finishes and any logo are available.

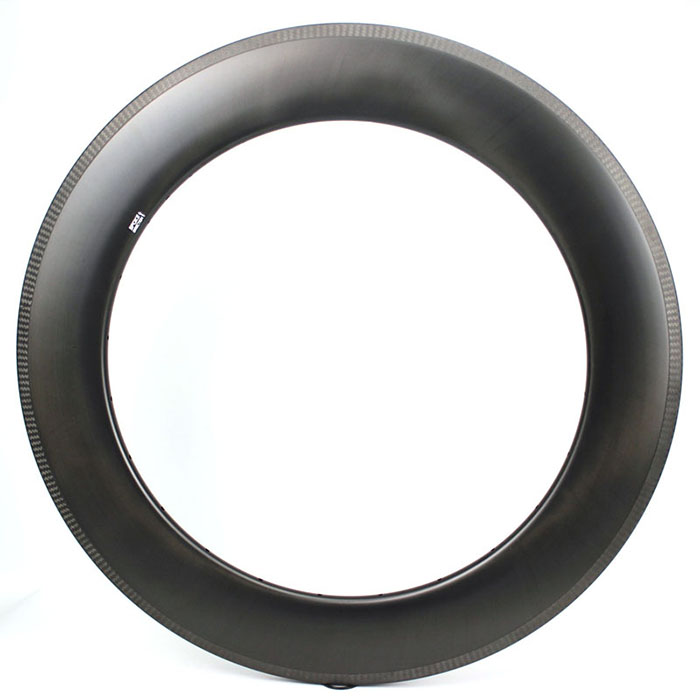

88mm Carbon Rims aero Triathlon Rear Wheel Carbon Tubular Rim
Features:
-Aero design mainly for road race, track, triathlon and iron-man races.
-High Profile 88mm*700C Carbon clincher / Tubular Road Bicycle Rim,Aerodynamic, High Stiffness and Light Weight for High Speed Track, Triathlon Races.
-Factory Production and Sales Directly, EN and UCI Standard Approval.
-Both rim brake and disc brake systems are available.
-Customized UD/3K/12K/Twill/Kevlar/Bowknot finishes and any logo are available.
Specifications:
Model | R88CV-26 | R88CD-26 | R88TV-26 | R88TD-26 |

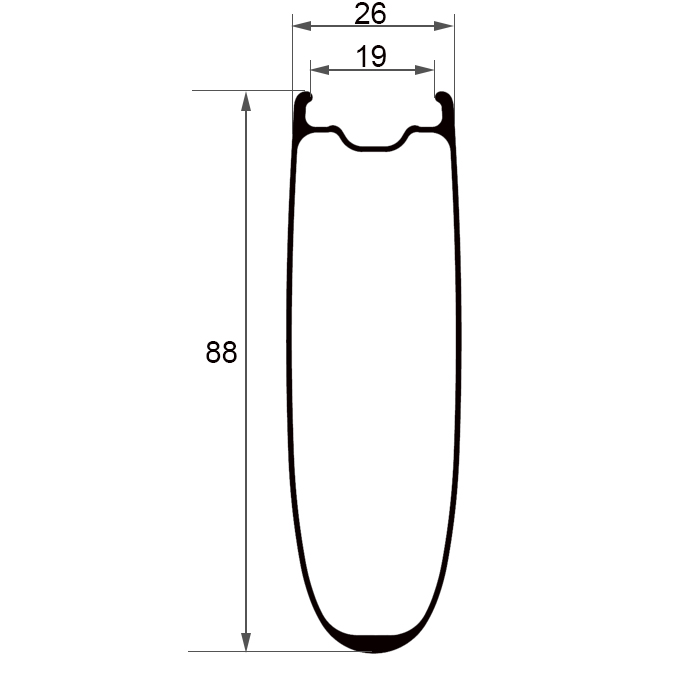

Drawing | ![]() ![]() ![]() | |||
Weight | NL: 660±15g UL: 640g±15g | NL: 640g±15g UL: 620g±15g | UL: 560g±15g | UL: 550g±15g |
Inner/Outer Width | 19mm/26mm | 19mm/26mm | 19mm/26mm | 19mm/26mm |
Depth | 88mm | 88mm | 88mm | 88mm |
Size | 700c | 700c | 700c | 700c |
Brake Type | Rim Brake | Disc Brake | Rim Brake | Disc Brake |
Max Rider Weight Limmit | 120kg/264lb | 120kg/264lb | 120kg/264lb | 120kg/264lb |
Max Tire Pressure | 120psi/8.27bar | 120psi/8.27bar | 120psi/8.27bar | 120psi/8.27bar |
Max Spoke Tension | 130kgf | 130kgf | 130kgf | 130kgf |
Tire Size (Recommended) | 700*25-40C | 700*25-40C | 700*25-40C | 700*25-40C |
Bead Type | Clincher | Clincher | Tubular | Tubular |
Warranty | 2 Years | 2 Years | 2 Years | 2 Years |
