these 55mm depth carbon rims are made from Premium Toray T700+T800 carbon fiber, plus stable resin system, which is the basis for light weight.
In addition, we optimize the lay-up design, eliminate excessive materials to save weight, and add extra materials around spoke hole area for reinforcement.
Thus, our carbon road rims are light weight, but still strong and stiff.
The design have sufficient aerodynamic performance without being affected too much by side wind resistance, reduces aero drag, is more laterally stiff, and has 30% greater impact resistance.
this carbon tubeless clincher rims are a great choice if you want a fast mid-depth rim that will give you an edge over the competition.
-700C*55mm High Profile Carbon Clincher Road Bicycle Rim.
-Spoke hole reinforcement technology, reduce the weight and increase the rim strength.
-Tubeless ready design, it makes road clincher rims better tubeless setup and better sealing.
-Clincher&tubular&tubeless optional.
-Both painted and paintless finishes are available, paintless save around 20 grams weight per rim.
55mm Road Bike Rims tubeless 700c carbon clincher rims
Features:
-700C*55mm High Profile Carbon Clincher Road Bicycle Rim.
-Spoke hole reinforcement technology, reduce the weight and increase the rim strength.
-Tubeless ready design, it makes road clincher rims better tubeless setup and better sealing.
-Clincher&tubular&tubeless optional.
-Both painted and paintless finishes are available, paintless save around 20 grams weight per rim.
Specifications:
Model | R55CV-26 | R55CD-26 | R55TV-26 | R55TD-26 |

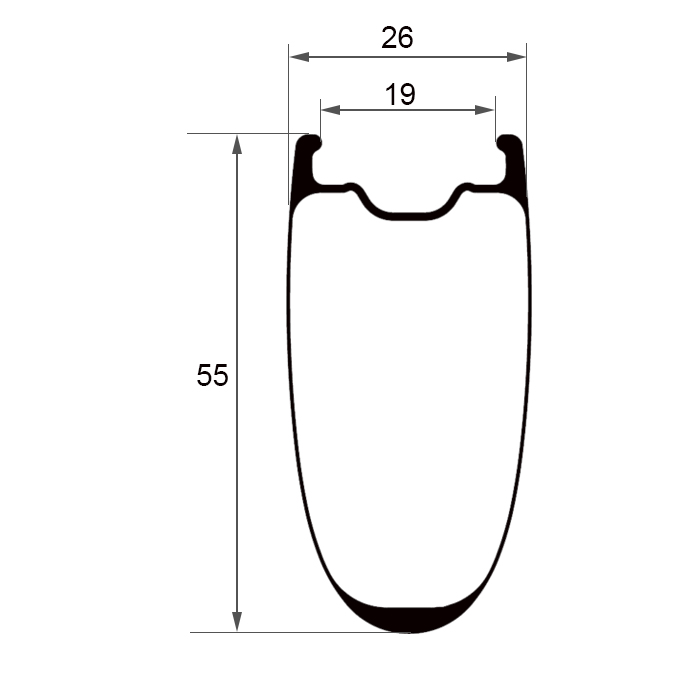

Drawing | ![]() ![]() ![]() | |||
Weight | NL: 525g±15g UL: 505g±15g | NL: 500g±15g UL: 480g±15g SL: 440g±15g | UL: 395g±15g | UL: 395g±15g |
Inner/Outer Width | 19mm/26mm | 19mm/26mm | 19mm/26mm | 19mm/26mm |
Depth | 55mm | 55mm | 55mm | 55mm |
Size | 700c | 700c | 700c | 700c |
Brake Type | Rim Brake | Disc Brake | Rim Brake | Disc Brake |
Max Rider Weight Limmit | 120kg/264lb | 120kg/264lb | 120kg/264lb | 120kg/264lb |
Max Tire Pressure | 120psi/8.27bar | 120psi/8.27bar | 120psi/8.27bar | 120psi/8.27bar |
Max Spoke Tension | 130kgf | 130kgf | 130kgf | 130kgf |
Tire Size (Recommended) | 700*25-40C | 700*25-40C | 700*25-40C | 700*25-40C |
Bead Type | Clincher | Clincher | Tubular | Tubular |
Warranty | 2 Years | 2 Years | 2 Years | 2 Years |
