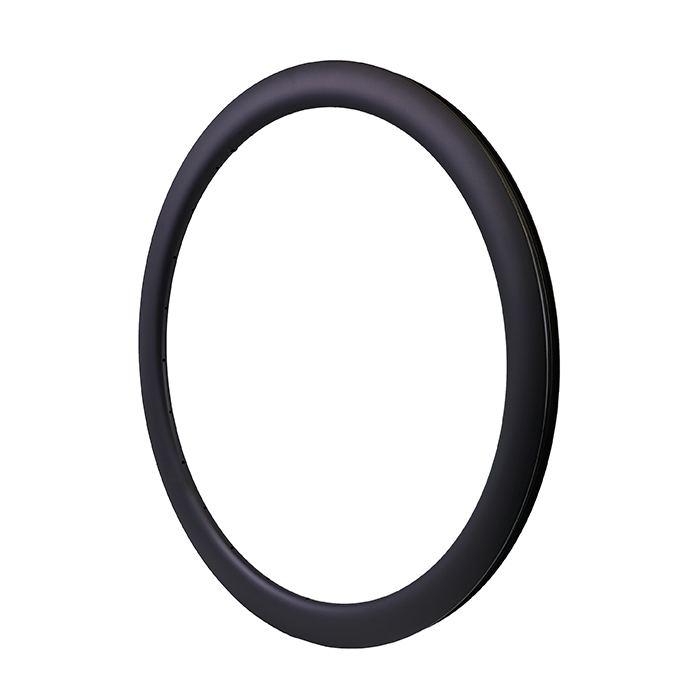

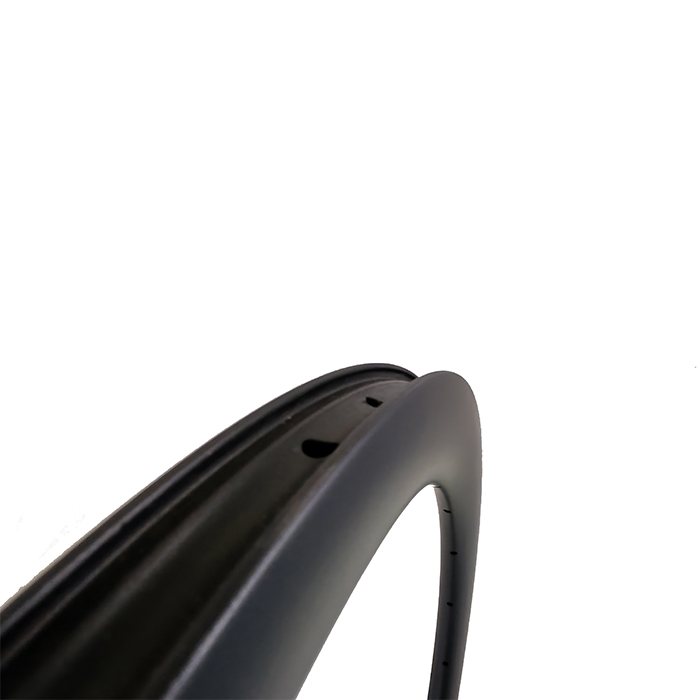

This 45mm disc carbon bike rim boasts a wide 19mm internal width and aero-rounded profile for superior handling and speed. Its 26mm breadth enhances tire shape, providing superior grip and reduced rolling resistance.This tubeless-ready rim set offers a wide and stable platform for everything from road to gravel tires.
This is a comprehensive performance rim with an inner width of 19mm,help you soar up the climbs while still given you that aerodynamic edge when the road becomes flat.
-Super ultra light 390 grams weight for road or gravel bike races.
-26mm width symmetric disc brake road carbon clincher rim.
-Used T800/T1000 high modulus premium carbon fibers for production, light weight and high strength.
-Tubeless ready design, it makes road clincher rims better tubeless setup and better sealing.
-Customize the spoke hole angle according to the hub provided by the customer.
-UCI impact resistance passed 90 joules at least, avoid break cases.
26mm Wide Disc Brake Carbon Clincher Rims 700c Carbon Bicycle Rims 45mm 35mm Tubeless Compatible
Features:
-Super ultra light 390 grams weight for road or gravel bike races.
-26mm width symmetric disc brake road carbon clincher rim.
-Used T800/T1000 high modulus premium carbon fibers for production, light weight and high strength.
-Tubeless ready design, it makes road clincher rims better tubeless setup and better sealing.
-Customize the spoke hole angle according to the hub provided by the customer.
-UCI impact resistance passed 90 joules at least, avoid break cases.
Specifications:
Model | R45CV-26 | R45CD-26 | R45TV-26 | R45TD-26 |

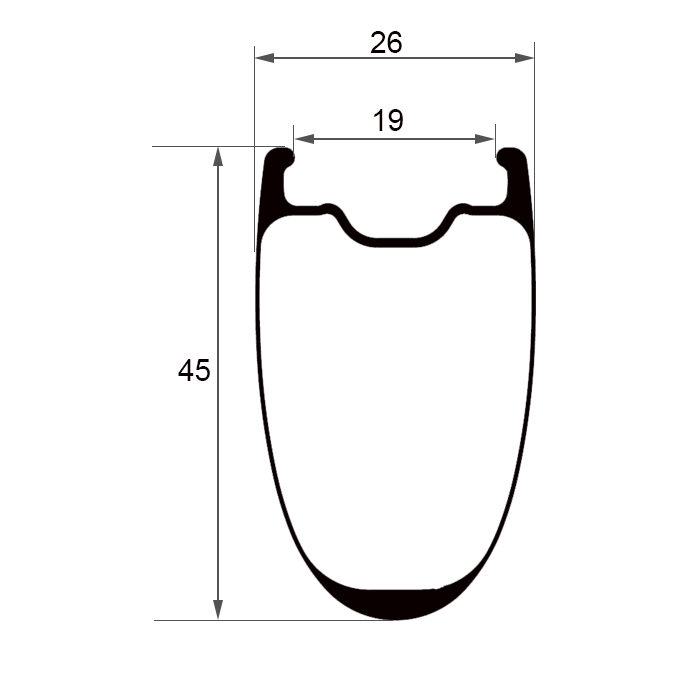

Drawing | ![]() ![]() ![]() | |||
Weight | NL: 475g±15g UL: 455g±15g | NL: 460g±15g UL: 440g±15g SL: 390g±15g | UL: 330g±15g | UL: 320g±15g |
Inner/Outer Width | 19mm/26mm | 19mm/26mm | 19mm/26mm | 19mm/26mm |
Depth | 45mm | 45mm | 45mm | 45mm |
Size | 700c | 700c | 700c | 700c |
Brake Type | Rim Brake | Disc Brake | Rim Brake | Disc Brake |
Max Rider Weight Limmit | 115kg/250lb | 115kg/250lb | 115kg/250lb | 115kg/250lb |
Max Tire Pressure | 120psi/8.27bar | 120psi/8.27bar | 120psi/8.27bar | 120psi/8.27bar |
Max Spoke Tension | 130kgf | 130kgf | 130kgf | 130kgf |
Tire Size (Recommended) | 700*25-40C | 700*25-40C | 700*25-40C | 700*25-40C |
Bead Type | Clincher | Clincher | Tubular | Tubular |
Warranty | 2 Years | 2 Years | 2 Years | 2 Years |
